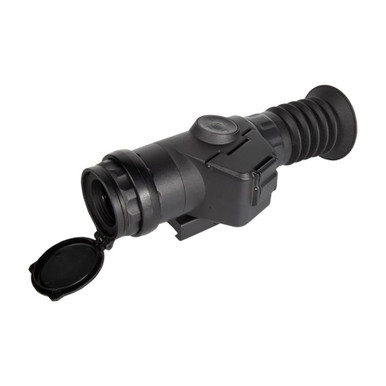

The Wraith 4K Mini Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.
Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (black & white or black-white custom), 850nm IR illuminator and first-focal-plane reticle options, USB-C external power connector, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
Models:
SM18041
Magnification: 2-16×32
Field of View, Ft @ 100 Yds: 40
SM18042
Magnification: 4-32×32
Field of View, Ft @ 100 Yds: 21
Included in Package
850nm IR Illuminator
Flip-up lens cover
Focus throw lever
Eye cup
Fixed picatinny mount
User manual
Battery Used
Type: 2x CR123A
Quantity: 1
Features
4K Digital Imaging
300-yard night detection range
Night vision mode
Daytime color mode
Built-in 4K video recording with audio capabilities
14 reticle options with 9 colors
Type of sensor CMOS sensor
Sensor resolution, pixels 4K (3840×2160)
Display type FLCOS
Display Resolution, pix. 1280×720
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Format of video clip AVI
Resolution of video clip 1080/4K
Format of photo files JPEG
Resolution of photo files 4k
Memory capacity Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level.
Optical characteristics
Lens diameter, mm 32
Magnification:
Mini 4K 2-16×32 (SM18041)
2-16x
Mini 4K 4-32×32 (SM18042)
4-32x
Field of View, Ft @ 100 Yds:
Mini 4K 2-16×32 (SM18041)
40
Mini 4K 4-32×32 (SM18042)
21
IR-illuminator
Emitter LED
IR Wavelength, nm 850nm
Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
Battery Life 2 hours on high
Battery type 2x CR123A
Range of Detection
Night Vision detection range, yd/m 300/274
Power Supply
Power Supply, v 6
Battery type 2x CR123A
Battery life 3.6Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB-C
Reticle
Windage & Elevation click value 1 pixel/ ~X0.4MOA
Adjustment range, elevation ~ 150 MOA
Adjustment range, windage ~ 350 MOA
Number of reticle options 10 SFP 4FFP
Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount Picatinny
Operating Temp,°F / C° 32 to 140 / 0 to 60
Waterproof rating IPX6 – water resistant
Nitrogen Purged, yes/no no
Shockproof, yes/no yes, 3ft
Maximum recoil, caliber .308
Tube diameter n/a
Length, in/mm 6.299/160
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight (with batteries), oz 21.6 oz
